High Pressure Brass Self Lubricating Metal Oilless Bearing ISO9001 Certification

Brand Name : INWAY

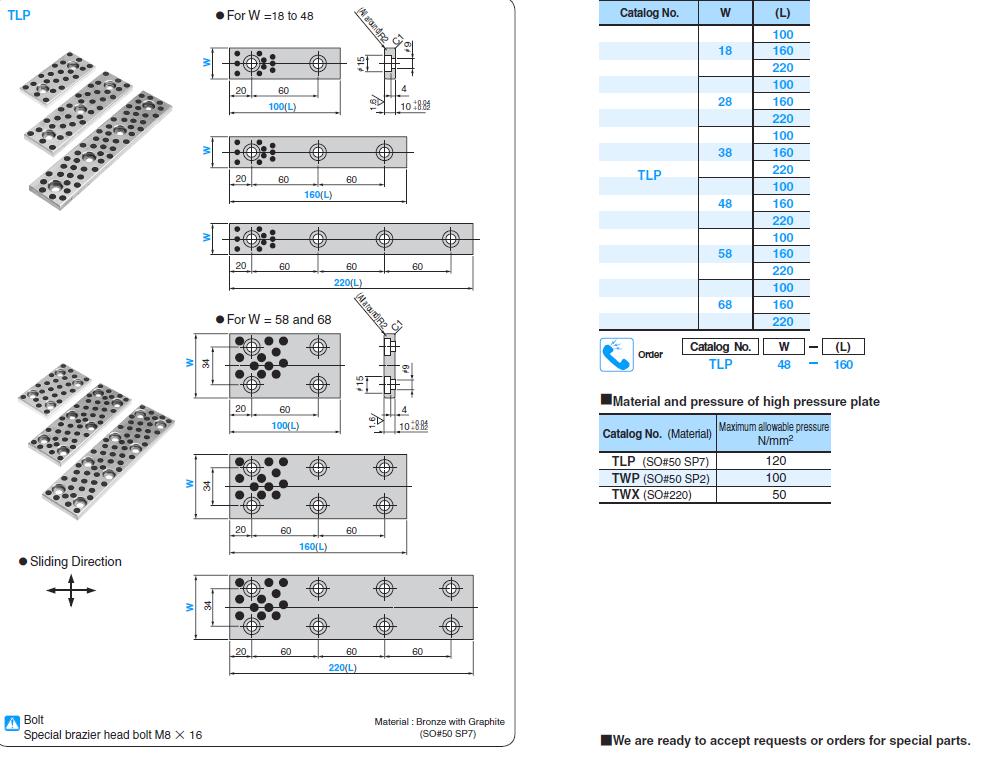

Model Number : TLP

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 PCS

Price : Negotiation

Payment Terms : T/T,L/C

Supply Ability : 100 tons/month

Delivery Time : 5 work days or based on quantity

Packaging Details : Carton+pallet

Material : casting bronze with graphite

Thickness : 10mm

Feature : OEM production,Long Life,oil free

Lubrication : oil free,Oil-free Self-lubricated

Standard : JIS

Type : Sliding,plate

Contact Now

High Pressure Brass Self Lubricating Metal Oilless Bearing ISO9001 Certification



Part A. Product Features



  1. Being used without oil and self-lubricating. Because of the linear coefficient expansion of the solid lubricant is bigger than that of the metal basement.

  2. Using solidlubricant.inlaid bushing can reduce the costs of the machinery mending and the oil in wide range.

  3. It can save the oil-putting equipment and at the same time it also design the solidlubricant-inlaid bushing into alt kinds of shapes in order to meet various needs in special places.



Part B . Product Operation



  • If products are additionally machined, do not damage the surface. Chamfer corners so that sharp edges or burrs are not present.
  • When a die is reused after storage for a long time, the sliding surface may have rust. Clean the sliding surface and apply grease to the surface.
  • The sliding surface becomes black or black gray after operation due to the film of special solid lubricant. This is normal, do not remove film by wiping.







Part C. Product Application



  • Demonstrates high performance under high-load and low-speed operations.
  • Self-lubricating bearing with embedded solid lubricant and metal base that conforms to the universally-acknowledged ASTM Standards (C86300).
  • Serviceable without the need for lubrication.







Types of Wear Plates
Material Thickness Code No. Feautures
Base Metal Oilless Type
FC250
Graphite
20 SESF Excellent sliding performance at low load and medium speed.
20 SESFT
SS400 Copper Powder sintering 20 SOX Excellent sliding performance at low /
medium load and medium speed.With the sintered layer using copper based powder and graphite, occurrence of seizure is very limited.
20 SOXT
S45C 10 TWX
10 TWXT
Copper alloy Graphite 20 SESW Excellent in load resistance and wearExcellent sliding performance at high load and low speed.resistance. Good performance is shown in reciprocating and frequent starts and stops.
20 SESWT
10 TWP
10 TWPT
5 UWP
Steel (S45C) Graphite 20 FRP Since the surface hardness is HRC40 or more, it is excellent in wear resistance.
Steel (SKS3) 20 TSP Since the surface hardness is HRC58 or more, it is greatly excellent in wear resistance.
